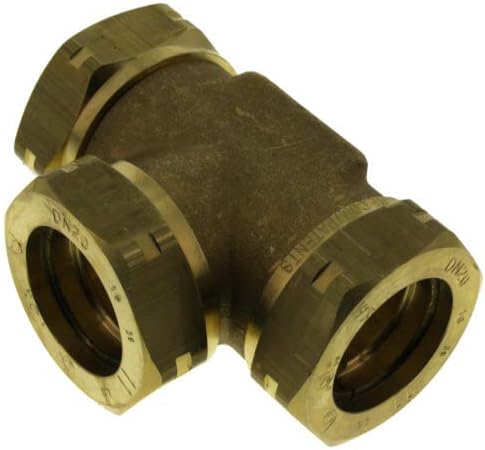

3/4" Run x 3/4" Run x 3/4" Tee - Tee Fitting

Description:FlashShield„ is metallically shielded corrugated stainless steel tubing system complying with ANSI LC 1 "FuelGas Piping Systems Using CSST" and listed with CSA, ICC and IAPMO. The FlashShield system is also listedto protective jacket standards, ICC-ES PMG LC1024, and LC1027. All mechanical tube fittings are SAE CA360brass incorporating double wall flare sealing. The Jacket-LockTM and Metal locking features provide steel tubingprotection and continuous conductivityApplications:XR3 fittings are designed with a patened feature that contours the metal shield. This creates electrical continuity throughout the system. The XR3 fitting requires minimal torque for easy fitting installation. With no o-rings or gaskets, the reusable brass components provide a reliable metal-to-metal seat.Termination Fittings create a fixed point "stub-out" on a wall or floor surface.Features:Metal lock for enhanced continuity.Tool-less flare design; no special tools are required.Metal-to-metal seal, with no split rings, O-rings or gaskets.Self-guiding assembly to ensure a perfectly even flare.Exclusive, patented Jacket-Lock„ fitting eliminates exposed stainless steel beyond the nut.All components are fully reuseable.Listings:CSA Certificate 2728525ICC-ES Report No. PMG 1066 and PMG 1155IAPMO: File No. C-3250 and Report No. 0239Technical Data:Max. Approved Operating Pressure 25 psiOperating Temperature Range -40F to 160FFitting Material CA360Specifications: Size: 3/4"Temperature Range (F): -40F to 160FMax Pressure: 25 psiConnection Type: FNPT

• Size: 3/4"
• Temperature Range (F): -40F to 160F
• Max Pressure: 25 psi
• Connection Type: FNPT
